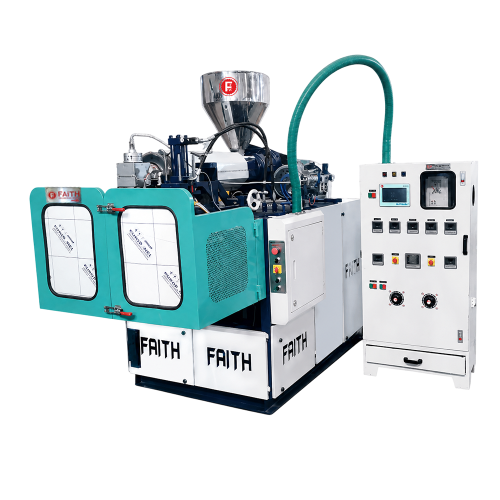

500 Ml Single Head Single Stage (Model – FEW1000H)
This is one of the superior quality FEW1000H Blow Moulding Machine in the industry, As a prominent Manufacturer, Exporter and Supplier of the Blow Moulding Machine, we ensure to provide machines with best technical specifications, Not just this, Blow Moulding Machine provided by us is also available at market competitive prices.
|
SPECIFICATION DATA
|
| Screw Diameter |
50 mm |
| Plasticizing Capacity |
16 to 20kg/hr |
| Maximum Opening |
200 mm |
| Minimum Opening |
150 mm |
| Ratio |
21 L/D |
| Blowing Capacity |

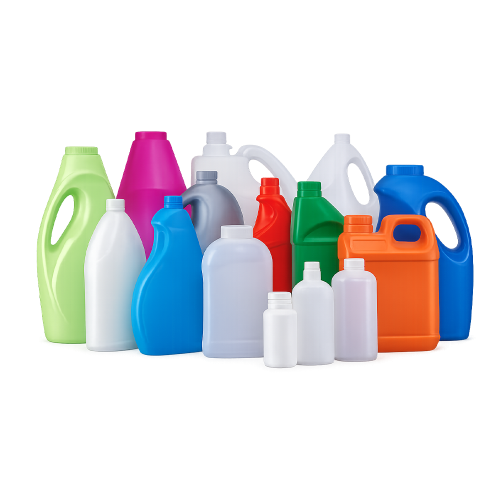

500 to 2 Ltr |
| Mould Thickness |
200 mm |
| Mould Length |
340 mm |
| Mould Width |
225 mm |
| Dry Cycles/min |
15 Nos |
| Max Container Dia |
130 mm |
| Air Requirements |
12 CFM |
|
ELECTRIC DATA
|
| Extruder Motor |
5kw/7.5hp |
| Hydraulic Motor |
3.7kw/5hp |
| Oil Tank Capacity |
200 Ltr. |
| Heating Zone |
5 Nos. |
| Heating Load |
9 kw |
| Blower Load |
.25kw/.18hp |
| No. of Blower |
2 Nos. |
| Total Power Con of M/C |
17.7 kw |
|
DIMENSION & WEIGHT OF MACHINE
|
| Machine Weight |
2000kg (Aprox.) |
| Machine Dimension LxWxD |
83” x 48” x 80” |
| Panel Weight |
105 kg (Aprox.) |
| Panel Dimension LxWxD |
55” x 28” x 17” |
